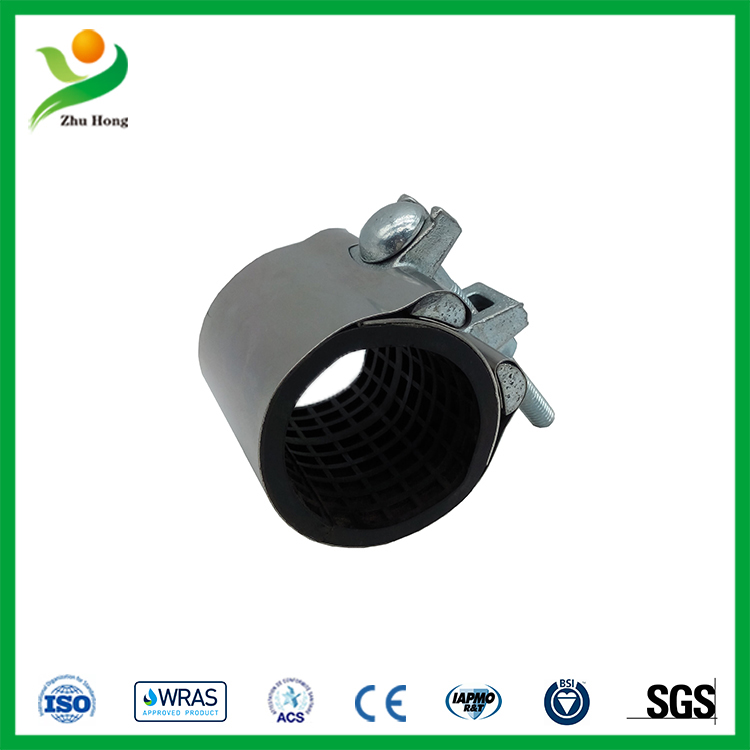

SJW-F SS Full-Circle Pipe Repair Clamp

SJW-F SS Full-Circle Pipe Repair Clamp SJW series is applied on quick repairing of the small leakage on oil/gas /water supply or drain pipe which has advantages of handiness ,small volume ,easy to use ,safe and fire-free ,and also can be used under pressure .

SJW-F SS Full-Circle Pipe Repair Clamp



SJW series is applied on quick repairing of the small leakage on oil/gas /water supply or drain pipe which has advantages of handiness ,small volume ,easy to use ,safe and fire-free ,and also  can be used under pressure .

Ductile Iron Repair clamp coupling Technical Parameters

Pipe O.D.Range Working pressure Length Bolts
Min-Max PN W Specifications Length Torque
mm bar mm M L Nm
21-25 16 75/150/300 10 75 50
26-30 16 75/150/300 10 75 50
29-33 16 75/150/300 10 75 50
33-37 16 75/150/300 10 75 50
42-45 16 75/150/300 10 75 50
44-48 16 75/150/300 10 75 50
48-51 16 75/150/300 10 75 50
50-54 16 75/150/300 10 75 50
55-60 16 75/150/300 10 75 50
60-64 16 75/150/300 10 75 50
65-69 16 75/150/300 10 75 50
69-73 16 75/150/300 10 100 50
71-76 16 75/150/300 10 100 50
78-82 16 75/150/300 10 100 50
82-87 16 75/150/300 10 100 50
87-93 16 75/150/300 10 100 50
94-100 16 75/150/300 10 100 50
99-104 16 75/150/300 10 100 50
105-111 16 75/150/300 10 100 50
112-117 16 75/150/300 10 100 50
120-126 16 75/150/300 10 100 50
126-131 16 75/150/300 10 100 50

Repair clamp coupling structure chart
