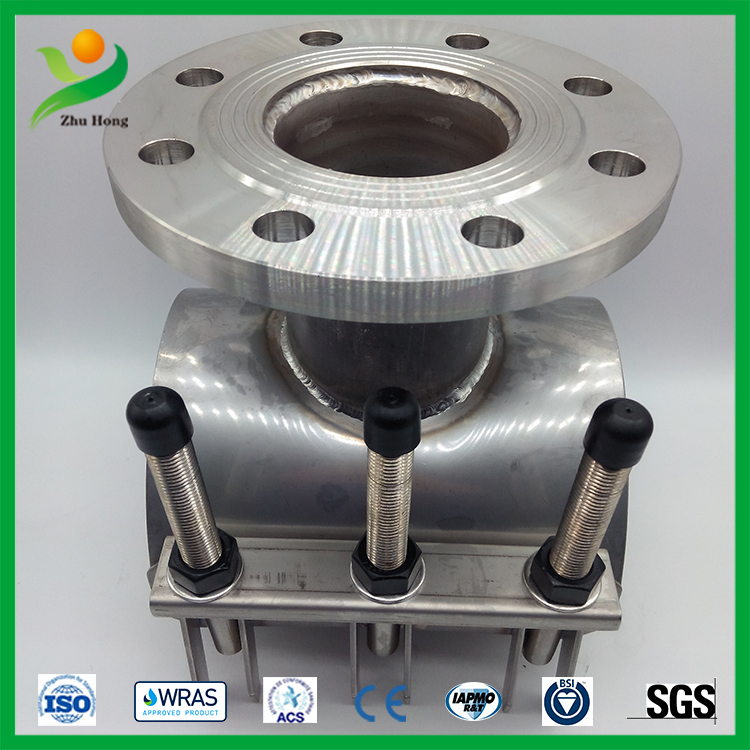

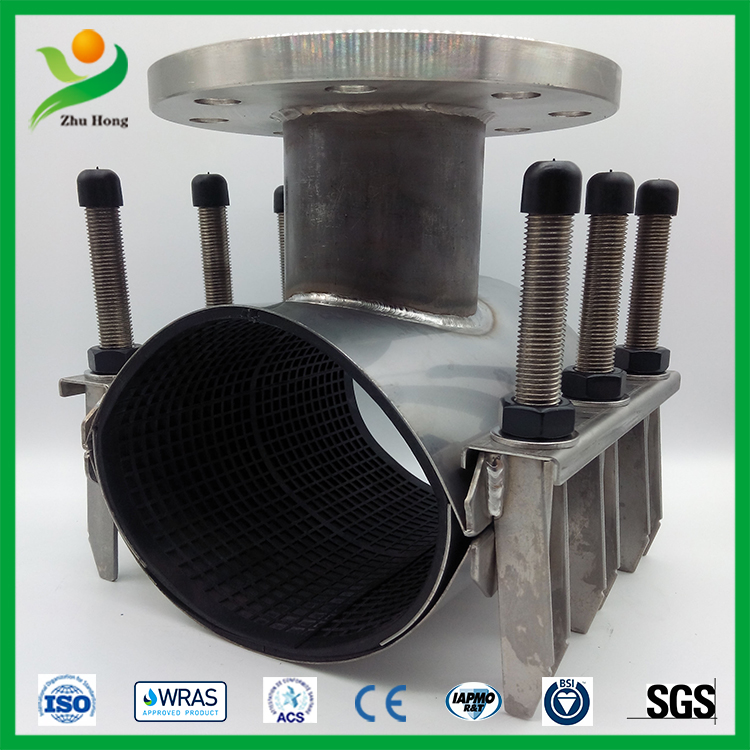

CRFT-2 Double Band Repair Tee Clamp with Flange

Multi-function tee products are economical and handy fittings which can solves different connecting and repairing problems .The branch of this product can help users easy to operate and solve many problems like instrument installation ,sample drawn and pipe connection .This series is widely used on the diversion of gas /oil /water supply and drain pipelines ,without removing the pipe and also can be installed under pressure. The reducing part can be female /male thread, flange, etc.

CRFT-2 Double Band Repair Tee Clamp with Flange

Multi-function tee products are economical and handy fittings which can solves different connecting and repairing problems .The branch of this product can help users easy to operate and solve many problems like instrument installation ,sample drawn and pipe connection .This series is widely used on the diversion of gas /oil /water supply and drain pipelines ,without removing the pipe and also can be installed under pressure. The reducing part can be female /male thread, flange, etc.

Pipe O.D.mm

Pipe O.D.

Range(mm)

Working

pressure(bar)

Length(mm)
DN Min-Max PN 300 400 500 600 1000
80 88-110 16 DN80-PN10/16 DN80-PN10/16 DN80-PN10/16 DN80-PN10/16
100 108-128 16 DN100-PN10/16 DN100-PN10/16 DN100-PN10/16 DN100-PN10/16
100 114-134 16 DN100-PN10/16 DN100-PN10/16 DN100-PN10/16 DN100-PN10/16
125 133-155 16 DN125-PN10/16 DN125-PN10/16 DN125-PN10/16 DN125-PN10/16
150 158-180 16 DN150-PN10/16 DN150-PN10/16 DN150-PN10/16 DN150-PN10/16
150 190-210 16 DN150-PN10/16 DN150-PN10/16 DN150-PN10/16 DN150-PN10/16
150 195-217 16 DN150-PN10/16 DN150-PN10/16 DN150-PN10/16 DN150-PN10/16
200 200-222 16 DN150-PN10/16 DN200-PN10/16 DN200-PN10/16 DN200-PN10/16
200 216-238 16 DN150-PN10/16 DN200-PN10/16 DN200-PN10/16 DN200-PN10/16
225 240-260 10 DN150-PN10/16 DN200-PN10/16 DN200-PN10/16 DN200-PN10/16
225 250-274 10 DN150-PN10/16 DN200-PN10/16 DN200-PN10/16 DN200-PN10/16
300 314-334 10 DN150-PN10/16 DN200-PN10/16 DN250-PN10/16 DN250-PN10/16 DN300-PN10/16
350 350-368 10   DN200-PN10/16 DN300-PN10/16 DN300-PN10/16 DN350-PN10/16
350 360-380 10   DN200-PN10/16 DN300-PN10/16 DN300-PN10/16 DN350-PN10/16
400 404-424 10   DN200-PN10/16 DN300-PN10/16 DN300-PN10/16 DN400-PN10/16
400 414-434 10   DN200-PN10/16 DN300-PN10/16 DN300-PN10/16 DN400-PN10/16
450 435-455 10     DN300-PN10/16 DN300-PN10/16 DN400-PN10/16
450 468-488 10     DN300-PN10/16 DN300-PN10/16 DN400-PN10/16
500 514-534 10     DN300-PN10/16 DN300-PN10/16 DN450-PN10/16
500 545-575 10     DN300-PN10/16 DN300-PN10/16 DN450-PN10/16
600 608-638 6       DN300-PN10/16 DN500-PN10/16
700 708-738 6       DN300-PN10/16 DN500-PN10/16
700 728-758 6       DN300-PN10/16 DN500-PN10/16
750 748-778 6       DN300-PN10/16 DN600-PN10/16
750 768-798 6       DN300-PN10/16 DN600-PN10/16
800 813-843 6         DN600-PN10/16
900 914-946 4         DN600-PN10/16
1000 1016-1048 4         DN600-PN10/16
1100 1118-1158 4         DN600-PN10/16
1200 1219-1269 4         DN600-PN10/16
1400 1420-1462 4         DN600-PN10/16

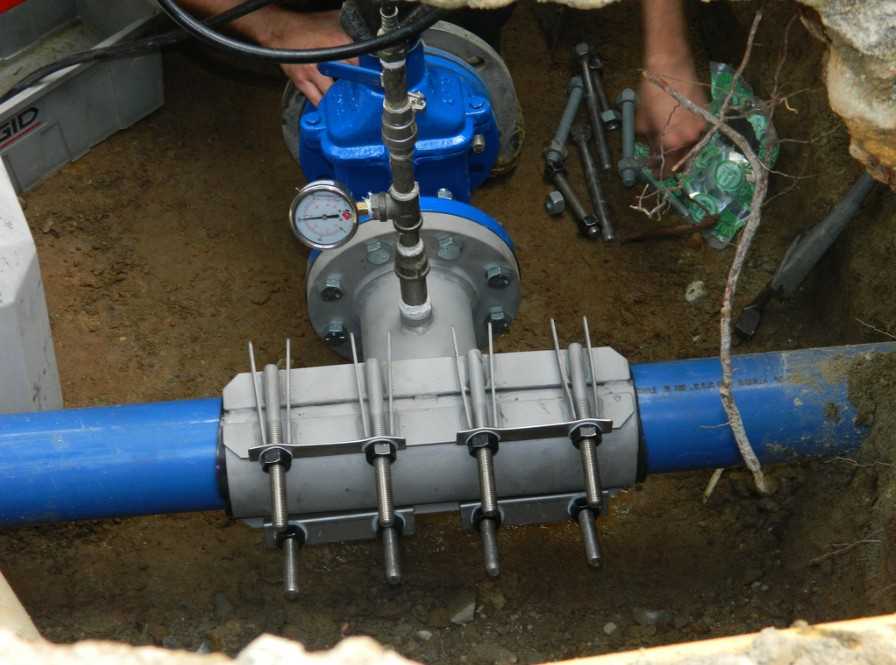

CRT-1 Band repair clamp tee Projects case

Band repair clamp tee Projects case
